Product Information:
Dimensions: 4.4 x 2.0 x 1.9cm
Item weight: 100g (approximate)
Product Number: URC0112FR
NOTE: For the front mount you need to drill two holes on the body post tower. You should place the Front Double Bracing Mount onto the body post tower and use it as guidance when drilling the holes.
Double Bracing Mount (Rear) #URC0112RR
Screws Required:
1x M4x10mm
2x M3x18mm
2x M3x48mm
Parts Required:
2x Traxxas REVO stock pushrods (#TRX5318)
Product Information:
Dimensions: 3.2 x 1.9 x 1.8cm
Item weight: 100g (approximate)
Product Number: URC0112RR
NOTE: The Rear Double Bracing Mount is direct a fit, no modifications required. The rear mount can also be used with the HPP-Germany Motor Brace for the E-REVO by using longer screws (2x M3x48mm).
E-REVO Double Bracing Mount (Front & Rear) #URC0112
Double Bracing Mount (Front) #URC0112FR
Screws Required:
2x M3x16mm & 2x 3mm nuts
2x M3x18mm
2x M3x44mm
Parts Required:
2x Traxxas SLAYER stock pushrods (#TRX5918)
Are you tired of breaking chassis and bulkheads on your Traxxas E-REVO?
Then this upgrade is made just for you !!!
Eliminate chassis flexure with this simple upgrade by creating an overall more rigid frame.
Product Description
It is well known that the Traxxas E-REVO chassis experience a lot of flexure due to its plastic construction. This is particularly evident at both ends of the chassis (front & rear) where the bulkheads are fixed onto the chassis. The reason for this is that the stiffness provided by the chassis at these two weak points is almost negligible. Therefore most of the resistance to flexure is provided by the bulkheads and their fixity onto the chassis.
Having this in mind and closely examining an E-REVO bulkhead you can easily identify its weakest point, which is at the end opposite the differential housing. As you can see, the weak point on the chassis is located closely to the weak point of the bulkheads therefore imagine if we superimpose these two weak points...the result is the weakest point on the E-REVO chassis.
You can easily strengthen these weak points on the front and rear of the truck by using the Double Bracing Mounts. You will never break a bulkhead again.
Only the mounts are included in the package, the pushrods and screws need to be bought separately. For more information please see below.
WORKS WITH TRAXXAS SWAY BAR KIT
Installation Guide:
The E-MAXX Double Bracing Mod works with TRAXXAS sway bar kit. Simply remove the spacers from the stock E-REVO pushrods and use them as spacers when mounting the pushrods onto the E-REVO shock towers. It is also adviced to use the spacers even if you are not using the TRAXXAS sway bar kit.
To get a better understanding please look at the pictures below.
First remove the blue spacers from the 2x stock E-REVO pushrods. You will have 4 blue spacers in total which covers both the front and rear installation. Use them as spacers between the pushrods and E-REVO shock towers when installing the Double Bracing Mod as shown in the pictures below.
WORKS WITH TRAXXAS SWAY BAR KIT

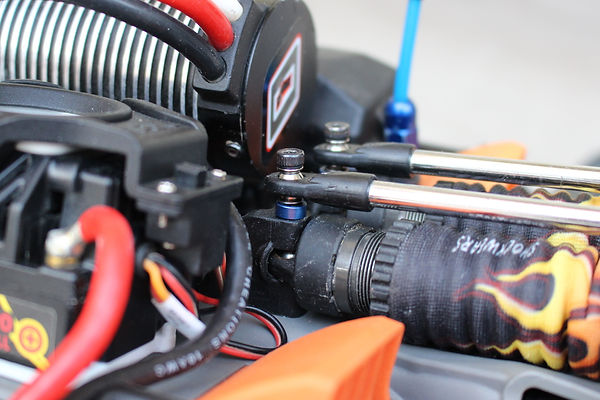

Installed spacers
Installed spacers
 |  |  |
|---|
